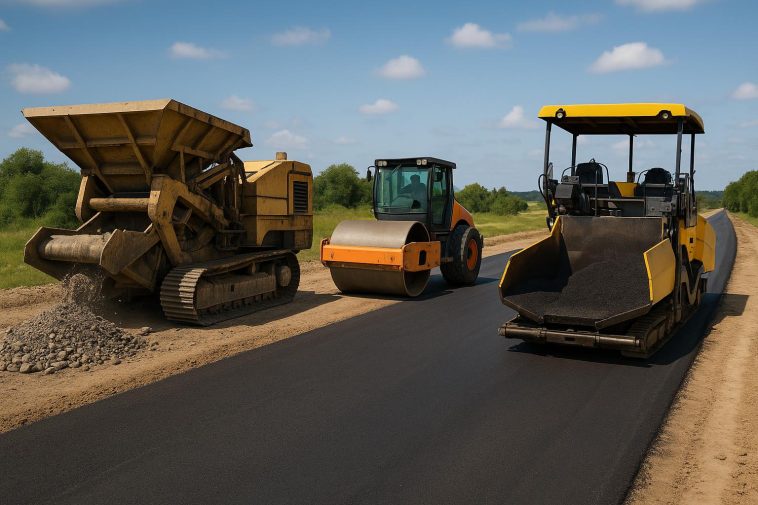

Road construction may seem so straightforward, you might think it is just to break the rocks, flatten, then lay blacktop. But every engineer or site manager knows it is a real waltz of heavy machinery, timing, and material flow. The way you deploy your equipment determines not only productivity but also pavement life and long-term maintenance costs. Let’s take a step-by-step look at how modern road projects sequence their operations-from raw rock to finished surface-and how each of the asphalt pavers, soil compactor, and jaw crusher decides on a very important role.
Laying the Groundwork: Reduction and Material Preparation
Every road starts with aggregates, and those begin at the quarry. This is where the road to a successful project literally begins: at the primary crusher.
Step 1: Primary Crushing
Reduction normally starts with a jaw crusher, the workhorse of any aggregate plant. Its simple, powerful compression mechanism normally reduces large boulders-sometimes 600 mm or more in size-to manageable chunks. A fixed and moving plate creates a V-shaped chamber that crushes rock efficiently through a repetitive squeezing motion. That is why the jaw crusher is ideal for the project, considering its versatile and ruggedness. With excellent performance on hard, abrasive materials, such as basalt, to softer limestone found in sub-base production, this makes it an optimum choice. For those projects requiring recycled asphalt or concrete, easily adjusted settings can produce the required gradation, with minimal fines.
For major highway projects where the need for aggregate is incessant and unending, a jaw crusher coupled with a cone or impact crusher downstream would guarantee that you get the cubic, uniform material you want for compaction or asphalt blending.
Step 2: Testing and Stockpiling
After crushing, the screens sort the material in various sizes: base course, sub-base, or filler. Each fraction shall be stocked in a different pile area in order to maintain gradation control. Consistent sizing here reduces variation in density later at compaction, thus saving both time and fuel.
Groundwork: Compaction and Subgrade Preparation
Once the aggregate is prepared, the site goes to earthwork and compaction-the most important step in ensuring a road lasts decades instead of years. The use of the correct kind of soil compactor is therefore essential.
A road is only as strong as its subgrade. The soil compactor, also called a vibratory roller, compact the loose soil and granular layers by static weight and dynamic vibration. Modern compactors utilize accelerometers and GPS mapping (intelligent compaction) to ensure that every part of the site achieves target density.
Different sites require different compaction equipment: some might need vibratory smooth drum rollers, some sheepfold rollers and intermediate compaction projects might need pneumatic-tired rollers.
Generally, the process goes in this order: dozers and graders for rough grading, moisture conditioning, then several passes with pad foot roller-for subgrade-finally smooth-drum or pneumatic compaction for base layers. This sequence avoids “soft spots” that later can cause rutting or cracking in the pavement.
Expert tip: Never compact dry soil. Optimum moisture content increases density by up to 10-15% and grossly improves the bearing capacity.
The Paving Stage: Precision and Timing
After the base is compact, solid, and tested for density, the stage will go to the asphalt pavers. These machines are the artists of the road, laying down the asphalt mat with surgical precision.
The anatomy of an asphalt paver can help you understand its functions better with modern asphalt pavers containing three important components. The hopper receives the mixture from the truck and feeds uniformly, the conveyor and auger system, the screed distributes the material evenly across the screed width, and partially compacts the asphalt to produce a smooth surface. Temperature consistency is the most vital aspect the mixture should reach around 135–150°C. Any cooling, often due to delays between trucks, results in rough textures or premature cracks.
Pavers That Match the Job
Because tracked pavers have better traction and stability on soft or uneven subgrades, they are good to go in rural or underdeveloped terrains. On the other hand, wheeled pavers are the best for urban or highway jobs where maneuverability and speed are great concerns. Large projects use MTVs in remixing and feeding the paver without having contact either the temperature will be uniform, or continuous paving will occur.
Rolling follows right after the laying.
Typically, the sequence includes:
- Breakdown rolling – A vibratory steel drum roller makes the initial passes right behind the paver.
- Intermediate rolling: Pneumatic rollers seal the surface and knead the mix for uniform density.
- Finishing Rolling: A static roller iron out marks and fixes the final surface texture. Skipping over this temperature-sensitive rolling window (usually 10–15 minutes) of even perfectly laid pavings halves the life of a road.
Matching Sequences to Worksite Conditions
Each site will have its idiosyncrasies- soil, weather, size of project, traffic loading. Scheduling equipment to suit makes the difference between a functioning road and one that will collapse prematurely.
- Rocky or mountainous terrain: Use jaw crushers and tracked pavers to accommodate uneven terrain. Higher amplitude setting soil compactors work more efficiently on coarse base courses.
- Coastal or silty zones: Use pad foot rollers for improved moisture management and tracked pavers to avoid rutting
- Urban roads: Speed and surface finish. Wheeled pavers and pneumatic rollers minimize surface marking and the ride is much smoother.
- Rehabilitation works: Compact pavers and portable jaw crushers are the best for confined areas and in a recycling process.
In Closing
Building a road is one continuously moving aspect of science where the right time, the proper sequence, and synergy between machines maintain performance. From the raw aggregate shaped by a jaw crusher, through the density delivered by a soil compactor, to the smooth surface laid by asphalt pavers, every machine has its moment and its method. Where the sequence flows, so does efficiency.
